Parameters of the house

Approximate price for turnkey including VAT

Low-energy houses

     7 750 000 Kč

  • Built up area 265,2 m²
  • Usable area 228,7 m²
  • Habitable rooms 5+kk

The house could be also done in a low-energy and a passive standard and in a system of a wood-building. On your request, we prepare a price offer for you.

Fast contact

Ing. Vladimír Zákopčan

Telefon: +420 601 374 959

E-mail: info@moderndream.cz

A detailed description

The modern two-storey house about the size of residential units 5 bedrooms suitable for use 4 - member family.
House is designed as a two-storey building without a basement. The total area of ​​the house 265.17 m². The spatial concept of the house is a private matter of the family house in a T-shape, which is oriented southwest parallel with the street line. An important factor in locating the proposed RD is to achieve a certain intimacy of the living environment in the plot, especially in the garden area, in relation to the living spaces of the house. Proposed detached house its matrix consistently respects the latest housing trends. Despite mingling with the fundamental mass of the building on two levels remains intact and mass concept completely separates the house at night and day part. House communicates with a garden area of ​​land through the vegetation roof over 1.NP a tree, which becomes part of the exterior terraces and therefore the house itself.
The layout of the house is divided into functional sections. Upon entering the building you are walking under the overlapped portion of the entrance hallway and a large closet located in the corridor. Following the entry into a toilet. Upon entry it is possible to smoothly go into daily zone consisting of a living room and a kitchen with pantry, or directly into the dark zone via a staircase on the second floor. There is a large part of the garage, which is connected to the entrance area of ​​the house. Over the garage is followed by a utility room with laundry. In communication with terrace and garden is located relaxation area with sauna as well as kitchen and living room. Night zone is located on the first floor and consists of a master bedroom, guest room, two children's bedrooms and two bathrooms, one of which is private within the master bedroom. Of these rooms can be continuously come out to the terrace overlooking its own private land and vegetation roof over 1.NP. House his clear, rational layout and architectural expression, which reflects current trends, ranks among modern architectural works.

Note:
When an urban-architectural design of the house is to be considered the correct orientation of the cardinal reasons insolation and also proposed a house as well as the existing house in the immediate vicinity.

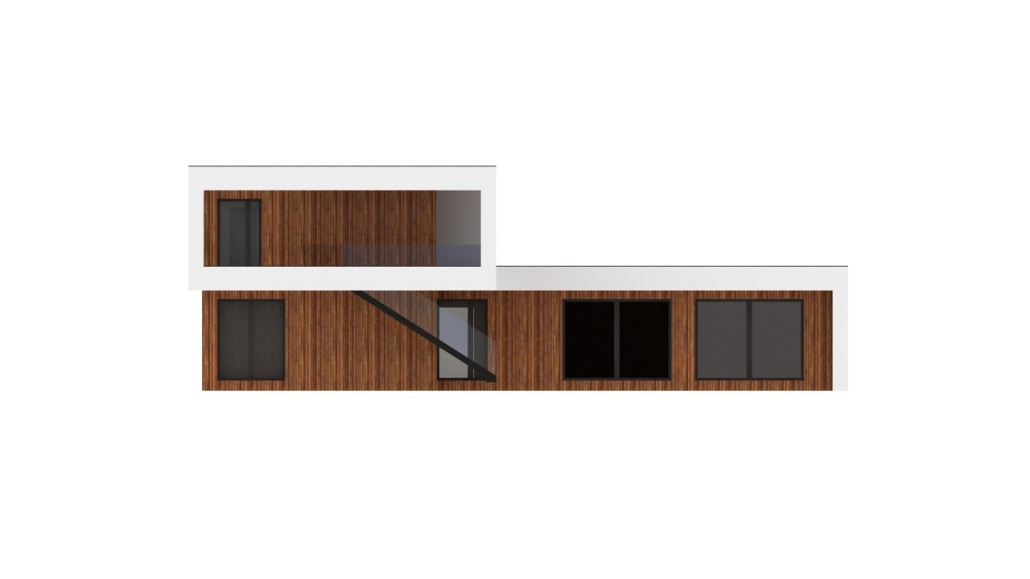

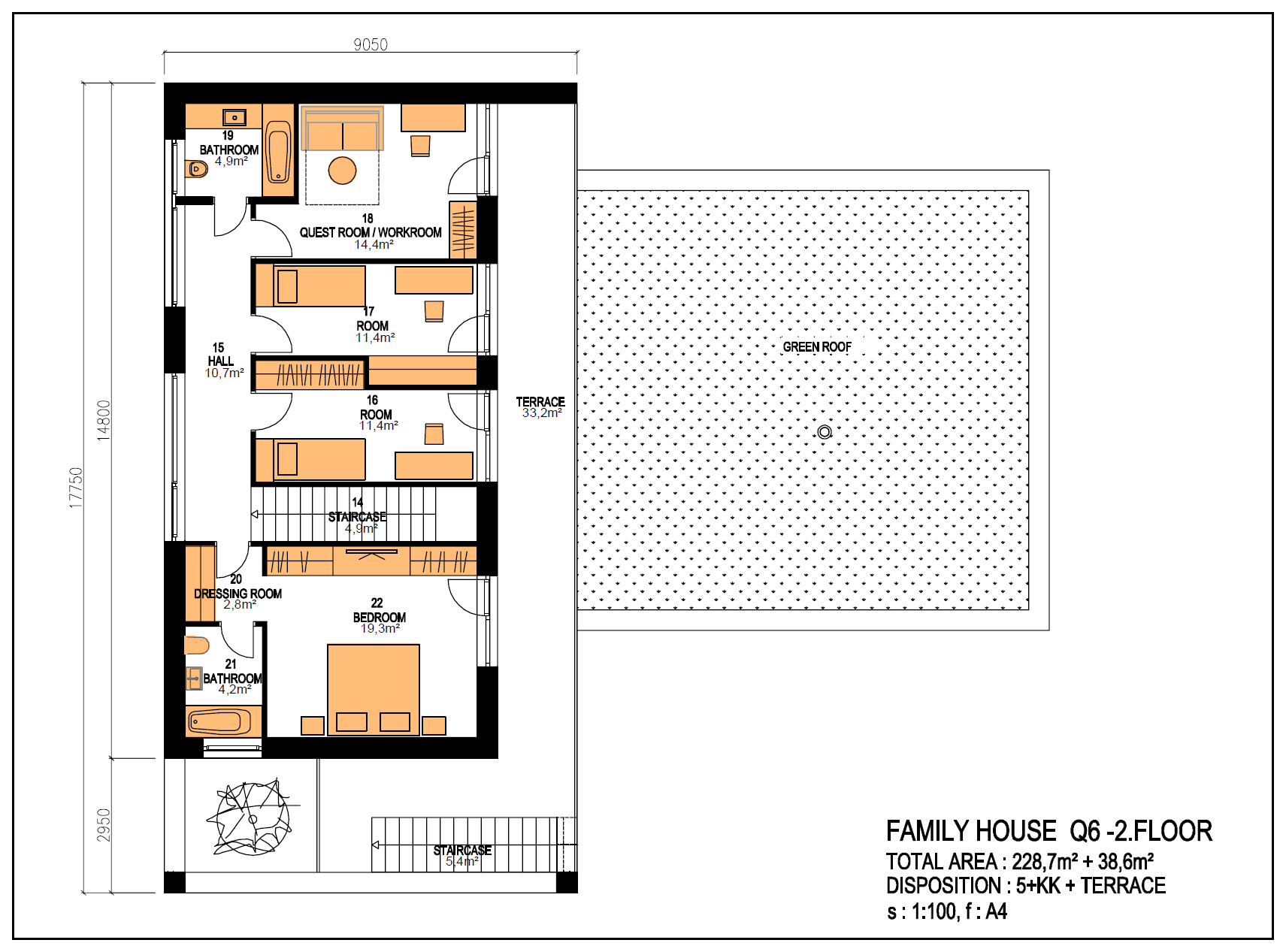

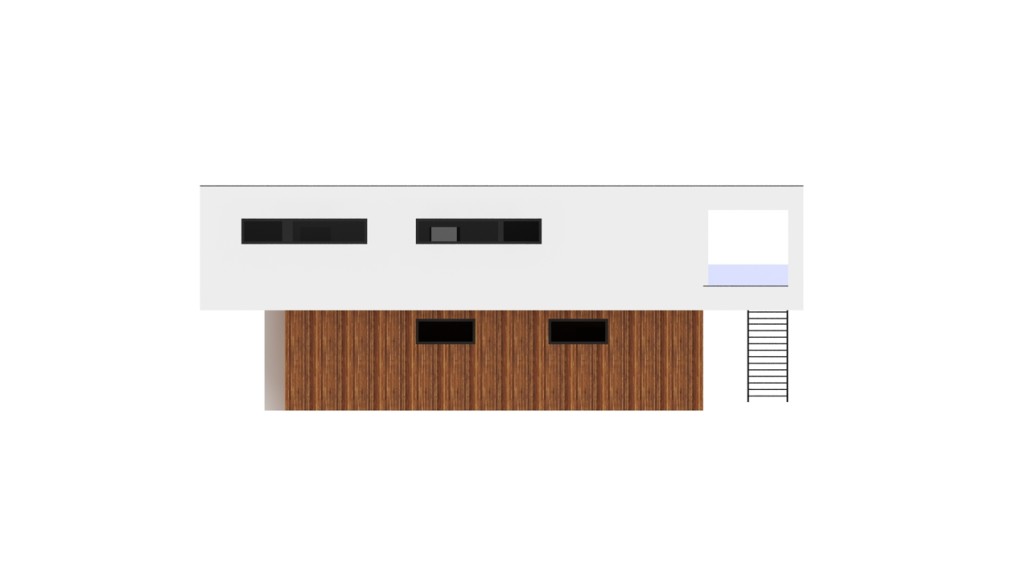

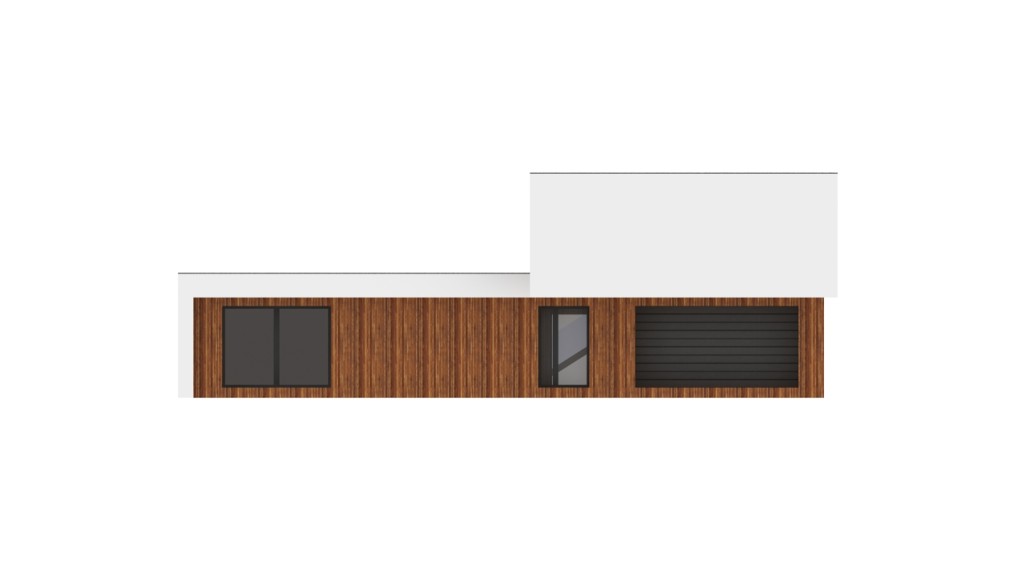

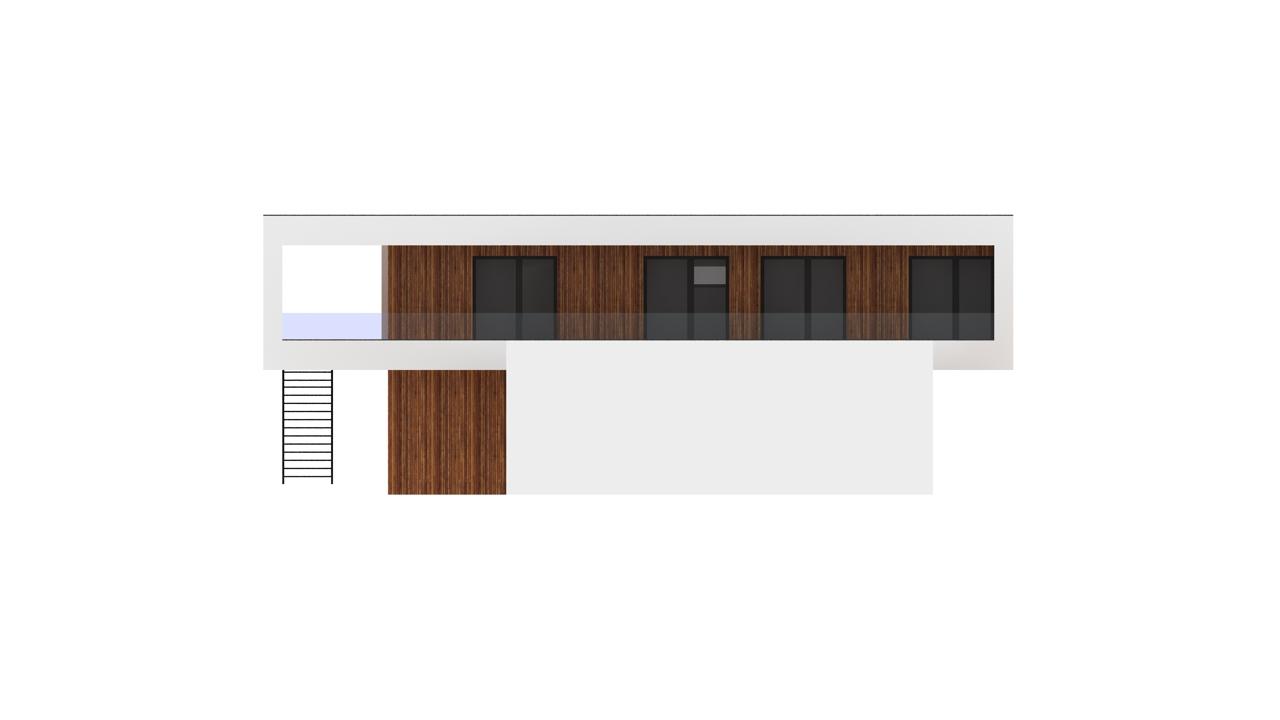

Floor plan and views

The project contains placing of the house in a parcel of a land, connection to an engineering site, a card of an energy difficulty of the house, fire administration and distribution of the ​our specialist.

It is possible to pursue the changes in the project documentation.

Adjust and supply all ground plans in English. A description of the rooms and information of the measurements.

1aj 2aj

o1

o2

o3

o4

Standards and prices

 Washbasin set

 3760,- Kč

Mixer with drain plug 900,- Kč
Installation standing taps  500,- Kč
Sink width 60 cm incl. accessories (angle valves, plastic siphon)  1600,- Kč
Installation and connection of the sink, incl. accessories, silicone  760,- Kč
3449-1009125021

3447-1009112672

 Washbasin set

 3610,- Kč

Sink width 40 cm incl. accessories (angle valves, plastic siphon) 1450,- Kč
Installation and connection of the sink, incl. accessories, silicone 760,- Kč
3450-1009127990

 Wall-hung toilet set

 10600,- Kč

Wall-mounted toilet incl. accessories (suspension seat with plastic hinges) 2300,- Kč
Installation wall hung toilet and buttons 800,- Kč
Geberit flushing system for WC 6700,- Kč
Installation and connection of the flushing system Geberit 800,- Kč
    3454-1009139198

 Hanging bidet set

5550,- Kč

Bidet incl. accessories (angle valves, plastic siphon) 3400,- Kč
Installing a bidet 800,- Kč
faucet 850,- Kč
Installation standing taps 500,- Kč
    3441-1009511734

 Standing WC set

4050,- Kč

Standing WC incl. accessories (suspension seat with plastic hinges) 3300,- Kč
Installation and connection of WC kombi 750,- Kč
    3453-1009136766

 Rectangular bath set

12200,- Kč

Bath mixer wall (no shower set) 1600,- Kč
Installation wall faucet 600,- Kč
Bath acrylic 150-170x70cm incl. accessories (bath feet, angle valves, plastic siphon) 7100,- Kč
Installation and connection bath incl. accessories, silicone 2900,- Kč
3442-1009092905 3451-1009129733

 Rectangular bath set

13300,- Kč

Bath acrylic corner 150x100cm incl. accessories (bath feet, angle valves, plastic siphon) 8200,- Kč

 Shower corner in total

19800,- Kč

Wall shower faucet + mounted shower set 1900,- Kč
Installation wall shower faucet and mounted shower set 700,- Kč
Shower sliding, acrylic quadrant shower tray, incl. accessories (siphon, stainless steel grating) 13100,- Kč
Installation and connection of the shower enclosure, incl. accessories and silicone 4100,- Kč
3442-1009092905
3445-1009106483 3443-1009095056

 laminate flooring

from 350,- Kč/m2

 Tiles and paving

from 250,- Kč/m2
